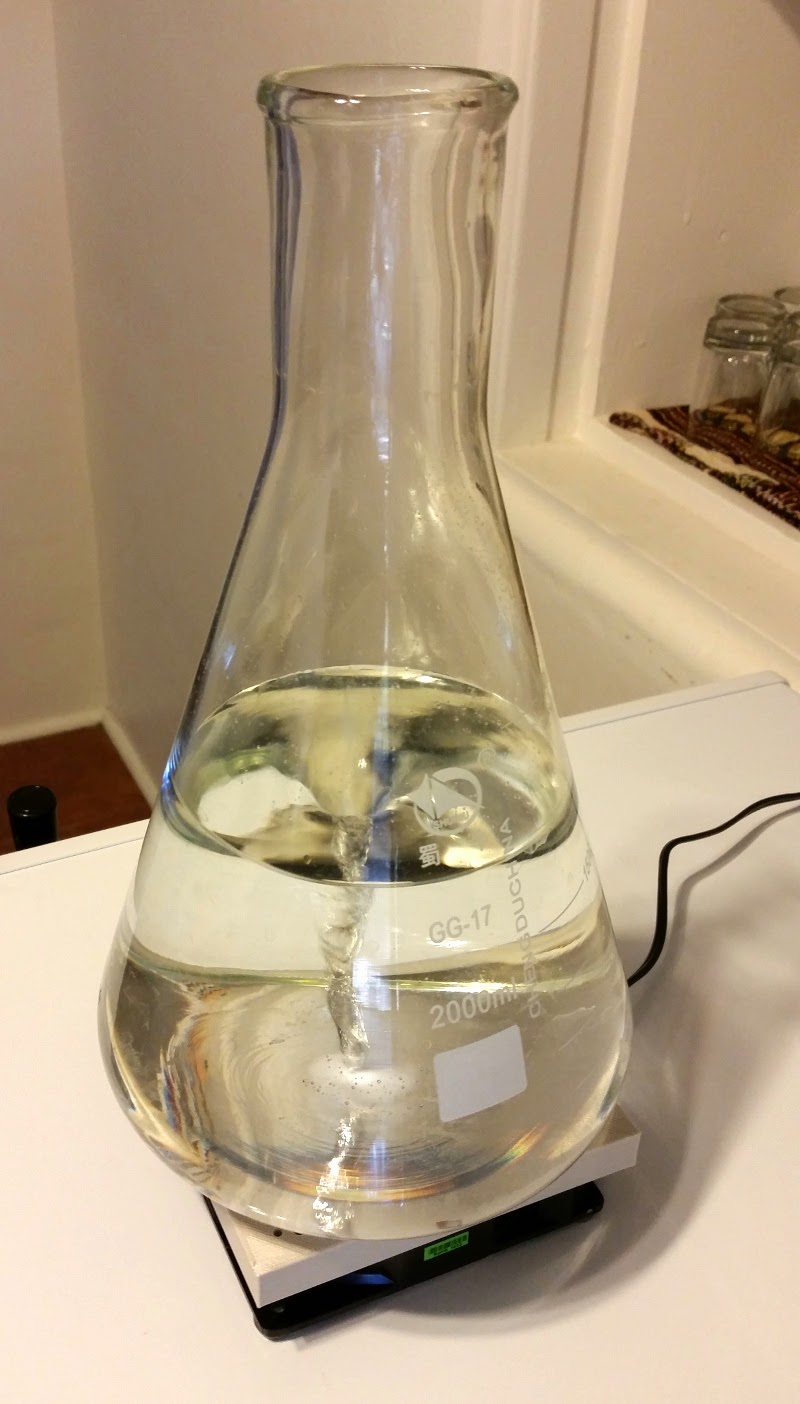

|Stir plate in action|
As I continue to expand my home microbiology lab, a stir plate seemed like a logical addition. Good laboratory grade ones are reliable, but expensive ($75 on up). Cheap kits and cheaply made stir plates are easy to find on-line, but often only have middling reviews. So, I decided to make my own.
Not being an electrical engineer, I wasn’t entirely in love with the idea of soldering wires and the like, so I elected to use one of the builds that modifies a computer cooling fan. A project posted at Homebrew Finds gave basic directions, some designs for a 3D printed magnet mount, and a list of parts easily found on Amazon. A little more searching on Thingiverse found this base for the Ehrelenmeyer flask, which I shrank slightly in the Z-axis (subtracting ~5 mm, but leaving the X and Y dimensions unchanged) before printing in order to move the magnets closer to the stir bar. I also added some silicone feet under the fan, to give a little air circulation as well as to prevent movement of the stir plate when in use.
- Speed control fan (AC Infinity AI-120SCX Speed Control Fan Kit for Cabinet Cooling, Single 120mm)
- Neodymium magnets (BYKES 10 Neodymium Super Strong Extremly Powerful Rare Earth Refrigerator Magnets 1/2 x 1/8 Inch Disc N48)
- 6 x 25 mm stir bar (2 of SEOH Magnetic Stir Bar Plain PTFE 6 x 25mm)
- Magnet mount (3D printed)
- Flask base, mounted on top of fan (3D printed)
- Super glue
- Silicone “feet” to put under fan (similar to these on Amazon)
